Bearings for agricultural machinery / Bearings for agricultural machinery
1) This description is for informational purposes only and we assume no responsibility for any inaccuracies, errors, etc.
2) The weight of less than 0.001 kg is indicated as 0.001 kg
3) The sketch does not contain all the design features of the productGo to purchase

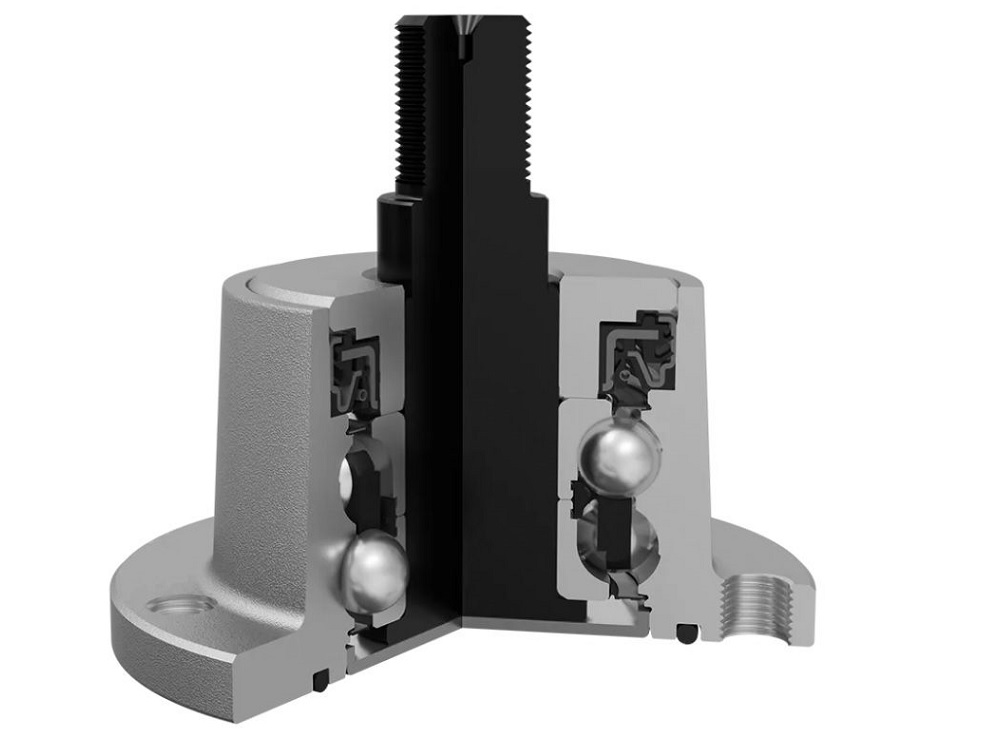

SKF AGHU3098X5C-MBC agri hub
| Brand | Country of origin of the brand |
|---|---|
| SKF | Sweden |
The dispatch of the goods is carried out within 1-2 banking days from the order day!
Look at the prices for analogues-substitutes:
Look at the prices for analogues-substitutes:

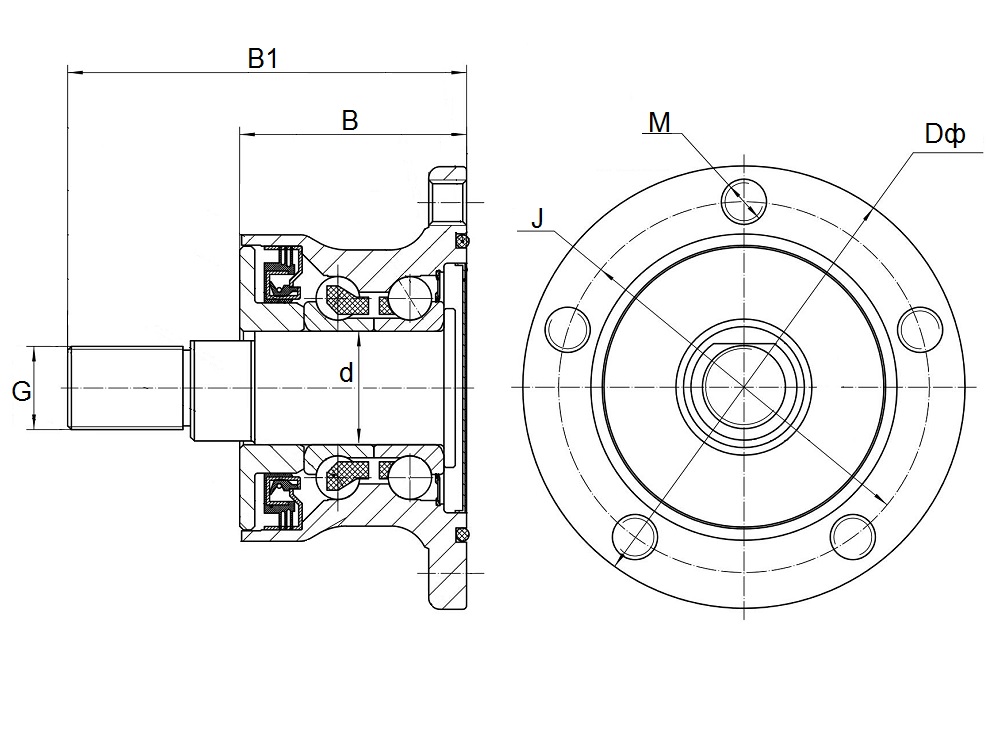

Sketch
Characteristics:
(SKF AGHU3098X5C-MBC agri hub)
| Shaft diameter d | d | 30 | mm |
| Flange diameter Dф,mm | Dф | 117 | mm |
| The diameter of the circumference of the centers of the mounting holes J | J | 98 | mm |
| Height (width) B | B | 60 | mm |
| Shaft thread,G | G | 22x1.5 | mm |
| Diameter of fastening thread in flange,M | M | M12x1.25 | mm |
| Number of holes in flange | Array | 5 | Array |
| Overall bearing width B1 | B1 | 102 | mm |
| 2.55 |
2) The weight of less than 0.001 kg is indicated as 0.001 kg
3) The sketch does not contain all the design features of the product
