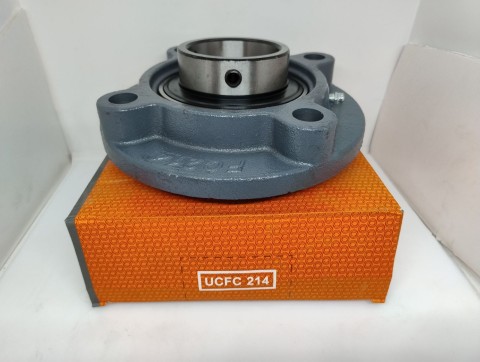

Bearing CRAFT UCFC214
|
Are available
|
| Price: | 2138 uah |
| Quantity: |
Are available
| Price : | 2138 uah |
| Quantity : | |
| Brand | Country of origin of the brand |
|---|---|
| CRAFT BEARINGS | Lithuania |
The dispatch of the goods is carried out within 1-2 banking days from the order day!
Look at the prices for analogues-substitutes:
| Name | Brand | Photo | Video | Dimensions | Price / Availability |
|---|---|---|---|---|---|
|
Radial insert ball bearing Bearing UCFC 214 |
PRC |
|
d: 70 A: 215 P: 177 Analogues |
1025 грн.
Are available
|
|
|
Radial insert ball bearing Bearing CX UCFC214 |
CX |
|
d: 60 A: 215 P: 177 Analogues |
2075 грн.
Are available
|
|
|
Radial insert ball bearing Bearing JTEKT KOYO UCFC214 |
JTEKT KOYO |
 |
d: 60 A: 215 P: 177 Analogues |
5919 грн. Goods expected Notify me of admission Request a call back | |
|
Radial insert ball bearing Bearing NSK RHP UCFC214 |
NSK |
|
d: 60 A: 215 P: 177 Analogues |
7879 грн. Goods expected Notify me of admission Request a call back |
Look at the prices for analogues-substitutes:
| Notation | Brand | Photo | Dimensions | Price for 1 pc. / Availability |
|---|---|---|---|---|
|
Radial insert ball bearing Bearing UCFC 214 |
PRC |
|
d: 70 A: 215 P: 177 Analogues |
1025 uah
Are available |
|
Radial insert ball bearing Bearing CX UCFC214 |
CX |
|
d: 60 A: 215 P: 177 Analogues |
2075 uah
Are available |
|
Radial insert ball bearing Bearing JTEKT KOYO UCFC214 |
JTEKT KOYO |
|
d: 60 A: 215 P: 177 Analogues |
5919 грн. Goods expected Notify me of admission Request a call back |
|
Radial insert ball bearing Bearing NSK RHP UCFC214 |
NSK |
|
d: 60 A: 215 P: 177 Analogues |
7879 грн. Goods expected Notify me of admission Request a call back |
Sketch
Characteristics:
(CRAFT UCFC214)
| Bearing inner diameter d | d | 70 | mm |
| Overall width A | A | 215 | mm |
| The diameter of the circumference of the centers of the mounting holes P | P | 177 | mm |
| Distance from the housing flange to the front of the inner ring of the bearing Z | Z | 61.4 | mm |
| Distance from housing flange to front of housing G | G | 40 | mm |
| Distance between holes for fastening bolts E | E | 125.1 | mm |
| Housing flange thickness K | K | 18 | mm |
| Centering diameter height J | J | 14 | mm |
| Distance from inner ring side face to raceway centre F | F | 30.2 | mm |
| Distance from mounting surface to center of bearing C | C | 17 | mm |
| 5.66 |
