Oil seals / Oil seals
1) This description is for informational purposes only and we assume no responsibility for any inaccuracies, errors, etc.
2) The weight of less than 0.001 kg is indicated as 0.001 kg
3) The sketch does not contain all the design features of the productGo to purchase

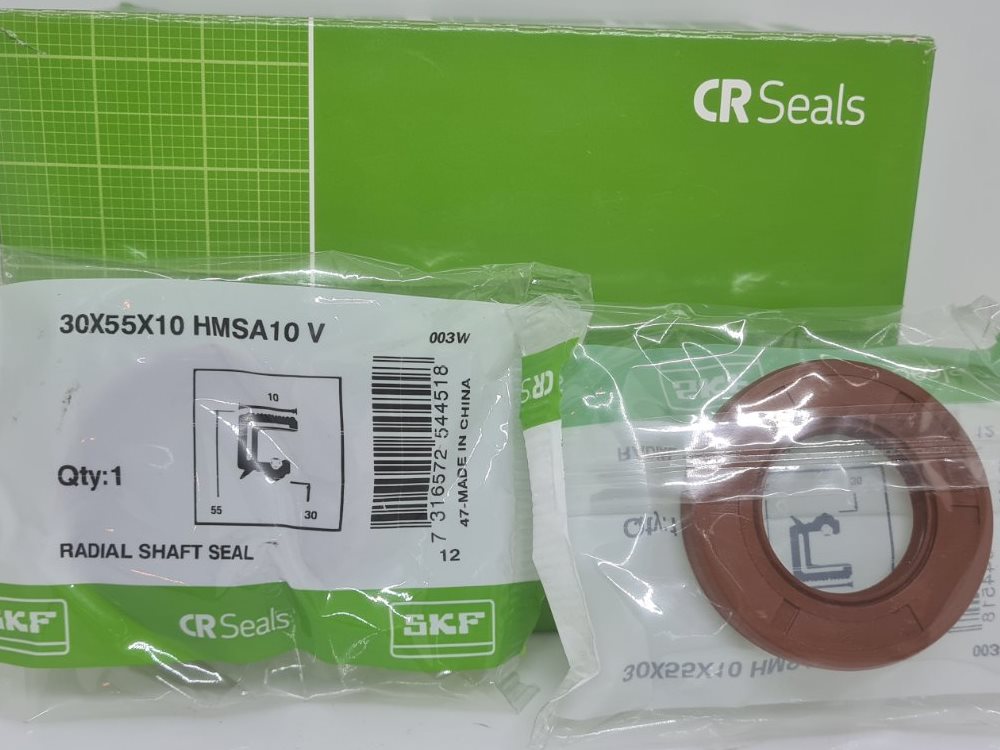

Oil seal SKF 30*55*10 HMSA10 V
Goods expected
Price:
441 uah
| Brand | Country of origin of the brand |
|---|---|
| SKF | Sweden |
The dispatch of the goods is carried out within 1-2 banking days from the order day!
Look at the prices for analogues-substitutes:
| Name | Brand | Photo | Video | Dimensions | Price / Availability |
|---|---|---|---|---|---|
|
Oil seal Oil seal 30x55x10 |
PRC |
|
d: 30 D: 55 h: 10 Analogues |
31 грн.
Are available
|
|
|
Oil seal Oil seal DICHTOMATIK 30x55x10 WAS NBR |
FIS Dichtomatik |
 |
d: 30 D: 55 h: 10 Analogues |
81 грн.
Are available
|
|
|
Oil seal Oil seal 30-55-10 |
Suptex |
|
d: 30 D: 55 h: 10 Analogues |
54 грн. Goods expected Notify me of admission Request a call back | |
|
Oil seal Oil seal SKF 30x55x10 HMSA10 RG |
SKF |
|
d: 30 D: 55 h: 10 Analogues |
Request a call back | |
|
Oil seal Oil seal 30x55x10 CX |
CX |
|
d: 30 D: 55 h: 10 Analogues |
Request a call back |
Look at the prices for analogues-substitutes:
| Notation | Brand | Photo | Dimensions | Price for 1 pc. / Availability |
|---|---|---|---|---|
|
Oil seal Oil seal 30x55x10 |
PRC |
|
d: 30 D: 55 h: 10 Analogues |
31 uah
Are available |
|
Oil seal Oil seal DICHTOMATIK 30x55x10 WAS NBR |
FIS Dichtomatik |
|
d: 30 D: 55 h: 10 Analogues |
81 uah
Are available |
|
Oil seal Oil seal 30-55-10 |
Suptex |
|
d: 30 D: 55 h: 10 Analogues |
54 грн. Goods expected Notify me of admission Request a call back |
|
Oil seal Oil seal SKF 30x55x10 HMSA10 RG |
SKF |
|
d: 30 D: 55 h: 10 Analogues |
Request a call back |
|
Oil seal Oil seal 30x55x10 CX |
CX |
|
d: 30 D: 55 h: 10 Analogues |
Request a call back |
Sketch
Characteristics:
(SKF 30*55*10 HMSA10 V)
| Shaft diameter under seal d | d | 30 | mm |
| Outer seal diameter D | D | 55 | mm |
| Height, width of seal h | h | 10 | mm |
| Height, seal width with anther h1 | h1 | 10 | mm |
| Maximum operating temperature, °С | t | 200 | °С |
| Minimum operating temperature, °С | t | -25 | °С |
| Permissible circumferential speed, m/s | v | 19.47 | m/s |
| Rotational speed, r/min | n | 12420 | r/min |
| 0.025 |
2) The weight of less than 0.001 kg is indicated as 0.001 kg
3) The sketch does not contain all the design features of the product
Video Viewed
Application
The HMSA10 V is a metal-reinforced radial shaft seal with a rubber outer diameter and a single sealing lip for oil or grease. The sealing lip is made of fluororubber (Viton) V (FKM). It is used between rotating and stationary machine components or between components in relative motion. HMSA10 seals are designed with a rubber outer diameter and a conventional elastomer sealing lip. A stainless steel tension spring in the seal and a non-contacting auxiliary lip optimize shaft sealing even in contaminated environments. Features include: high pumping speed, increased contamination protection with a dust-protective lip, and misalignment compensation
