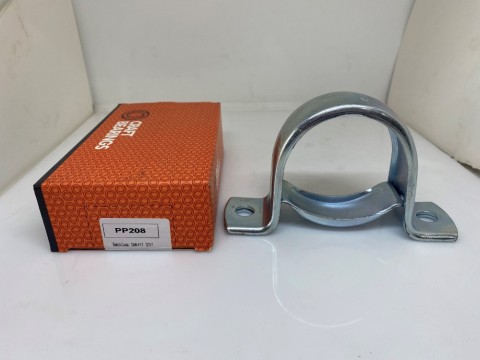

Sheet steel housing CRAFT PP208
| Brand | Country of origin of the brand |
|---|---|
| CRAFT | Lithuania |
The dispatch of the goods is carried out within 1-2 banking days from the order day!
Sketch
Characteristics:
(CRAFT PP208)
| Bearing inner diameter d | d | 40 | mm |
| Distance between the mounting base and the centerline of the sphere. landing diameter H | H | 43.7 | mm |
| Length (height) housing L | L | 148 | mm |
| Distance between holes for fastening bolts J | J | 120 | mm |
| Body base height/flange height H1 | H1 | 5 | mm |
| Case height H2 | H2 | 86.2 | mm |
| Housing width A | A | 43 | mm |
| Mounting hole size N | N | 13 | mm |
| Width housing A1 | A1 | 43.7 | mm |
| 0.297 |
